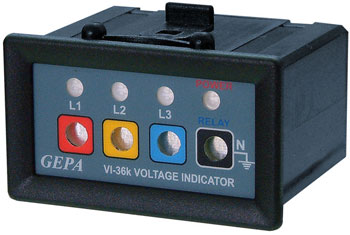

VI-36k Capacitive Voltage Indicator w/Relay Output
  • Description
    • Cost effective solution
    • LED indicator and test point for each phase
    • No auxiliary supply needed for LED indicators
    • 24/110VDC auxiliary supply for output contact
    • Change over contact with 10A capacitiy
    • Complies with EN 61234-5(2005) standard chapter 4.2.; LED lits and indicates voltage presence if input voltage is between 0.45n and 1.2Un, if lower than 0.1Un LED turns off.
    • High LED lumination even with 10pF insulators at 36kV
    • Custom design on order
    • Standard green LED or optional red LED
    • 58x32mm panel cu dimensions, flush mount
