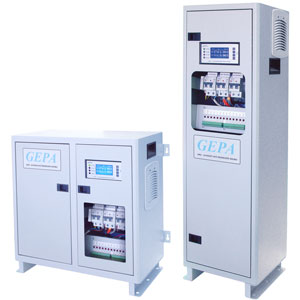

ARG-24 Series 24V Battery Charger w/Battery Group
  • Description
    Electrical
    • Microcontroller based, thyristor controlled design
    • Continuous 5 A, 10 A or 20 A current output
    • 18/26/55/150 and customizable Ah battery group capacity
    • Float and equalizing charge options
    • Soft start feature
    • Adjustable voltage output 20 – 30 VDC in steps 0.1 V
    • Adjustable current output 1 – 5 A / 10 A / 20 A in steps 0.1 A
    • Battery charge current and load current is adjustable separately
    • DC source mode, adjustable voltage output in range of 0.1 – 32 VDC and current output in range of 0.1 – 7.5 A / 15 A / 30 A
    • Short circuit protection at output
    • Battery maintenance programs
    • Fan assisted cooling system with adjustable temperature
    • VRLA type batteries with 10 years of life expectancy
    Mechanical
    • Easy access to batter group with drawer system
    • Wall or floor montage
    User Interface
    • Audible and visual alarms
    • Comprehensive and easy menus with 2.6” graphic LCD
    • 4 digit password protection against unauthorized access
    Optional Features
    • 14 dry contact outputs for 13 different alarms for SCADA systems
    • Battery lead supervision
    • Deep discharge protection
    • High/low AC input protection
    • Communication with Modbus RTU protocol via RS-485
    Applied Standards
    • Perfomance test has been verified with IEC 60146-1-1 type tests
    • Operating temperature has been verified with IEC 60068-2-x Cold and Dry Heat tests

    User Guide
  •

    5 A

    10 A

    20 A

    Input Voltage

    220 VAC (±%20) / 50 Hz (±%5)

    Input Current

    1.25 Amax

    2.5 Amax

    5 Amax

    Input Power Consumption

    250 VAmax

    500 VAmax

    1000 VAmax

    Power Factor

    0.63

    Output Voltage

    27.6 VDC

       Battery Charge Voltage

    20.0 – 30.0 VDC

       DC Source Mode

    0.1 – 32.0 VDC

    Output Current

    5 A

    10 A

    20 A

       Battery Charge Current

    1 – 5 A

    1 – 10 A

    1 – 20 A

       DC Source Mode*

    0.1 – 7.5 A

    0.1 – 15 A

    0.1 – 30 A

    Output Power

    140 Wmax

    280 Wmax

    560 Wmax

    Output Filter

    L – C filter

    Efficiency

    >% 72

    Cooling Method

    Forced cooling with fan

    Ingress Degree

    IP 20**

    Operating Temperature

    (-20) – (+55) °C

    Storage Temperature

    (-30) – (+65) °C

    Relative Humidity

    <%95 RH (without condensation)

    Alarm Outputs

    14 NO dry contact,

    5A/30VDC or 5A/250VAC (Cosɸ = 1)

    Dielectric Withstand

    2000 VAC / 50 Hz, 1 min (between all circuits and case)

    Applied Standarts

    TS EN 60146-1-1 (2012)

    TS EN 61000-6-2 (2005)

    TS EN 61000-6-4 (2007)

    TS EN 61000-3-2 (2006)

    TS EN 60068-2-1 (2009)

    TS EN 60068-2-2 (2012)

    * Device provides 1.5 Irated only at DC source mode and doesn’t provide continuous current more than Irated.

    ** IP40, IP50 and IP51 are optionally available.
